Vertical Injection Molding Machine 4 Stations For PVC / TPR Strap / Uppers

Product Categories
Dongguan Kingkong Plastic Machinery Factory
Contact Now

Vertical Injection Molding Machine 4 Stations For PVC / TPR Strap / Uppers

  • 1
  • 2

Brand Name : KingKong(JINGANG)

Model Number : JG-304XD

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : EXW/FOB/CIF for your option

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 30 Sets per month

Delivery Time : within 25 days

Packaging Details : Steel base rack

Mold station : 4 PCS

Maximum injection capacity : 300 Grams

Color : 3

Motor power : 11 kw + 18.5kw

Voltage : 380V/3 phase/50/60hz

Require space : 20GP

Machine weight : 6 Tons

Machine structure : Vertical

Contact Now

Vertical PVC / TPR strap injection machine , Triple colors PVC Upper / Strap molding machine

This is a Vertical 4 stations injection molding machine for PVC / TPR /TR 3 colors Straps / Uppers. Able to equip with mold water distribution system, according to different product.

Feature:

  • Mold stations: 4 PCS;
  • Suitable input raw material: PVC/TPR;
  • Injection screw diameter: 40-50mm for your option;
  • Injection volume: Maximum 360 Grams;
  • Main spare part brand are from TaiWan or Japan brand;
  • Servomotor for your option to help you salve eletricity consumption;

  • Machine specification:

Raw material PVC/TPR/TR
Finished Product outsole, slipper, T Strap / upper
Mold station 4 PCS
Mold clamping force 45/80tons
Injection pressure 35 tons
Screw Diameter 40-50 mm
Max dimension mold 500x450x200mm (LxWxH)
Max injection volume 360 grams
Motor Power 11 kw + 15.3kw
Total net Weight 6 Tons
Machine dimension 2.8 x2.2 x4.2 M

  • Machine delivery time:

Within 25 days after confirm deposit;

  • Delivery term:

As per request: Exwork, FOB, CIF for your option;

  • Payment term:
T/T 30% in advance, balance before shipment;
(We will send the ready machine photo and also testing video for your information)
  • Engineer Oversea installation and aftersales service avaiable for you!
  • What we can supply for the same:

All kinds of PVC,TPR,TR,TPU,EVA Mold for shoe injection machine, and all necessary machinery to set up the shoe line, like Plastic Mixer, crusher, drying hopper, Water cooling tower, sole drilling machine, flip flop attaching machine,etc....

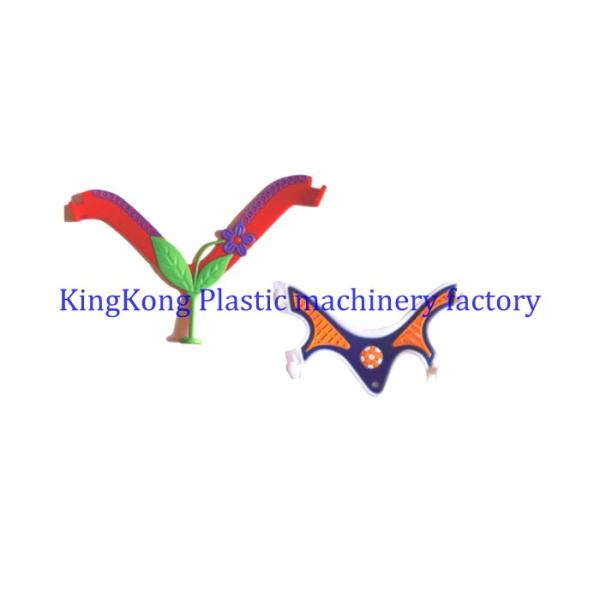

Finished Output Sample:

Vertical Injection Molding Machine 4 Stations For PVC / TPR Strap / Uppers
